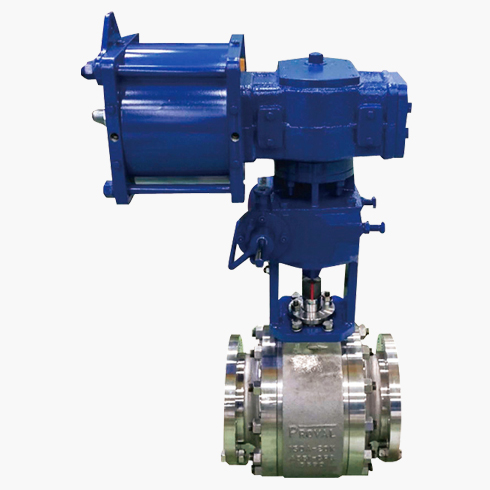

CONCENTRIC 2-WAY, 3-WAY BALL VALVES
The PROVAL provides 2-Way ball valves with a special inner valve which can be fully opened or closed by simply causing the stem to make a 90° turn. The off take from a ball valve, when totally opened, has same bore as the pipeline and its fluid resistant is negligible. For this reason, this automatic valve is best suited to on-off service, controlling various types of liquid, gas and slurry.
The PROVAL 3-Way ball valves are available in two types. The diverting type (L) splits flow by switching between two directions of inlets while the converging type (T) mixes two fluids by switching between two outlets. Both of those moves are made with a mere quarter turn of the stem.
FEATURES
- · Both directions
- The valve is tight in both directions owing to its Symmetrical construction, which often, means double life time.
- · High capacity
- When the valve is fully open, its flow resistance is at the minimum possible, it is equivalent to straight pipe.
- · Dynamic self-adjusting center-line
- Tolerance between body and seat allows the ball to maintain its position.
- · No leakage
- The Teflon seat valves, no visible leakage is allowed.
- · Low torque for Easier operation
- Easy to manually operated and cost-saving for actuation.
SPECIFICATION
| Model No. |
2-way |
YABC-112F1(Single Acting Type), YABC-312F1 (Double Acting Type) |
| 3-way |
YABC-112L1, 112T1(Single Acting Type), YABC-312L1, 312T1 (Double Acting Type) |
| Valve Type |
Cylinder actuator operated 2-way ball valve. |
| BODY |
Valve Size |
(mm) |
15 |
20 |
25 |
32 |
40 |
50 |
65 |
80 |
100 |
125 |
150 |
200 |
250 |
300 |
350 |
400 |
500 |
| (inch) |
½ |
¾ |
1 |
1 ¼ |
1 ½ |
2 |
2 ½ |
3 |
4 |
5 |
6 |
8 |
10 |
12 |
14 |
16 |
20 |
| Pressure Rating |
ANSI 150# ~ 2500# / 10K ~ 60K, |
| End Connections |
Flanged end: FF, RF, RTJ, M/F(female), T/G(female). ※Welding end: SW, BW. |
| Body Materials |
A216-WCB, A351-CF8, CF8M, CF3, CF3M |
Operating
Temperature |
Soft seat |
-20°C to 180°C |
| Metal seat |
-50°C ~ 800°C |
| Guide |
Top guide / Top & Bottom guide |
| Gland Packing |
V-PTFE, Grapoil |
| Gasket |
Asbestos, PTFE, SUS316 + Graphite spiral wound, Other alloy steels. |
| Painting Color |
Standard is silver. In the case of stainless, flange is not painted. |
| Trim Materials |
See “MATERIAL DATA” page 4 |
| PERFORMANCE |
Valve Action |
Normal open / close type |
| Rated Cv Value |
See page “FLOW CHARACTERISTICS” page 5 |
| Flow Characteristics |
See page “FLOW CHARACTERISTICS” page 5 |
Allowable Seat
Leakage Ratio |
Soft trim |
ANSI B16. 104 Class VI |
| Metal trim |
ANSI B16. 104 Class III
※Tight shut off - ANSI B16. 104 Class IV |
| ACTUATOR |
Model |
B0S(R) ~ R12S |
| Actuator Type |
Pneumatic rotary cylinder |
| Actuator Size |
Ø50 ~ Ø400 |
| Operating Angle |
0° ~ 90° |
Supply Air Pressure
kPa (kgf/cm²G) |
Double Action : 400~700 (4.0 ~ 7.0) |
| Spring Return : 500~700 (5.0 ~ 7.0) |
| Ambient Temperature |
-10°C ~+70°C (※0°C ~ +100°C) |
| Painting Color |
Standard is Blue (Anodizing or Epoxy) |
| Accessory |
Solenoid Valve, Air-set, Speed Controller, Lock-up valve, Limit Switch & Box,
Booster relay, Proximity Switch, Silencer, Manual handle, etc. |
[Notes]
(1) Valve performance is represented under the condition of standard packing (V-PTFE).
(2) ※: Manufactured and attached as according to customer’s order.
※ Optional special specifications (additional cost is required)
| Oxygen clean |
Special piping & Fitting |
| Cold area proof |
2-step position |
| Fire safe type |
Jacket type |
