FORGED VALVE

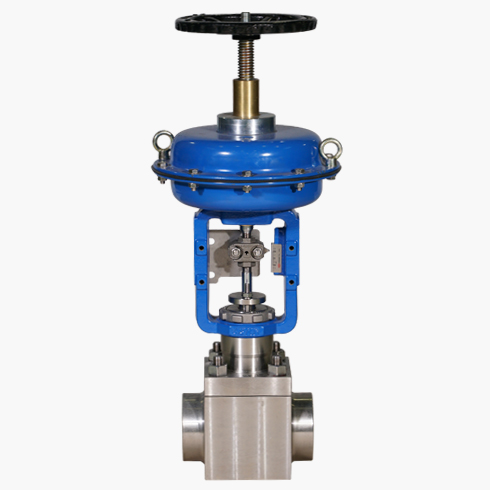

image of FORGED VALVE

FORGED STEEL GLOBE

More flow capacity for initial investment. Streamlined flow passages provide greater capacities than most forged bodies of the same line size.

Also, trim inventory costs are cut because dimensional standardization permit use of most standard proval valve cage trim parts, and be easily guick changed.

High-pressure and temperature capability with class IV shut off.

CONTACT SALES >

SPECIFICATION

· 1” througn 2” (25 though 50mm)
· ANSI 150# - 4500# / JIS 10K ~63K
  1. · FLANGE END
  2. · SOCKET WELDING
  3. · BUTT WELDING
Body Materials
· carbon steel
· stainless steel
· chrome-moly
Actuators
· M - SERIES
· C - SERIES
Trims
· single seat plug cage guided
· Low-noise, anti-cavitation trim (Variable Resistance Trim), single and multiple cages are available
Inherent Characteristic
· linear, equal percentage, quick change, modifed curve
