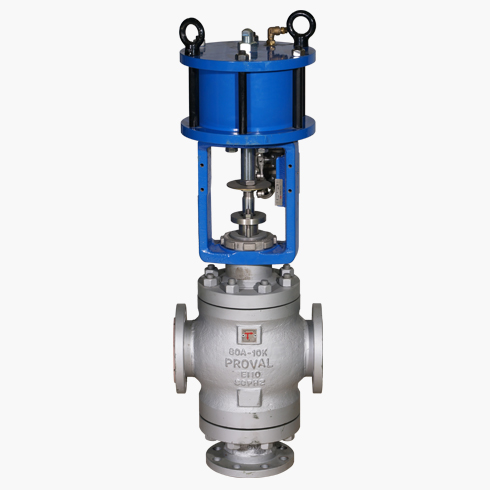

The PROVAL single soft seat control valves are designed for compact and leakage zero (Metal seat : ANSI Class Ⅳ std. tight sut off : Ⅴ). The valve simple construction having low pressure loss, high accuracy flow characteristics.
The flow shut-off performance complies with the JIS standards. Standards combined actuators are Cylinder & Diaphragm actuator is standard application.
| Model No. | Cylinder Act. | YAC-31211(Single Seat), YAC-31231(Cage Quick change type), YAC-31281(3-Way Type) | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Diaphragm Act. | YAD-112Q1 / 11231(R.A), YAD-212Q1 / 21231(D.A) | ||||||||||
| Valve Type | Pneumatic diaphragm or cylinder operated on-off globe valve. | ||||||||||
| BODY | Valve Size |
(mm) | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 |
| (inch) | 1 | 1 ¼ | 1 ½ | 2 | 2 ½ | 3 | 4 | 5 | 6 | ||
| Pressure Rating | ANSI 150#~4500# / JIS 10K ~ 63K | ||||||||||
| End Connections | Flanged end: FF, RF | ||||||||||
| Body Materials | FC20, A216-WCB, A351-CF8, A351-CF8M | ||||||||||
| Operating Temperature | -15°C ~ +170°C ※ Metal touch: -15°C ~ 230°C |
||||||||||
| Guide | Top guide , Top & Bottom guide Guide | ||||||||||
| Gland Packing | V-PTFE, PTFE yarn, Graphite yarn | ||||||||||
| Gasket | Asbestos (#T1500), SUS316+Graphite spiral wound | ||||||||||
| Painting Color | Standard is silver. In the case of stainless steel, flange is not painted. | ||||||||||
| Plug Characteristics | Quick opening (※ P-Port ) | ||||||||||
| Trim Materials | Soft : RTFE, Metal : SUS304(Stellited), SUS316(Stellited) | ||||||||||
| PERFORMANCE | Rated Cv Value | See “Cv VALUES” page 4 | |||||||||
| Allowable Differential Pressure |
See “ALLOWABLE PRESSURE DROP” page 4 | ||||||||||
| Allowable Seat Leakage Ratio |
Standard (Soft) | Leakage zero (ANSI B16. 104 Class VI) | |||||||||
| Metal | ANSI B16. 104 Class IV ※ Tight shut off: ANSI B16. 104 Class V |
||||||||||
| ACTUATOR | Actuator Type | Multi-spring diaphragm actuator | Double Action Cylinder actuator | ||||||||
| Model | A-220M, A-270MS | C-100 ~ C-500 | |||||||||
| Actuator Size (Diaphragm Size) | Ø220 | Ø270 | Ø100 ~ Ø485 | ||||||||
| Max. Stroke (mm) | 20 | 25 | 20 ~ 60 | ||||||||
| Supply Air Pressure kPa (kgf/cm²G) |
320 (3.2) | 350 (3.5) | 300 (3.0) ~ 700 (7.0) | ||||||||
| Spring Range kPa (kgf/cm²G) |
80~40 (0.8~2.4) | 120~280 (1.2~2.8) | - | ||||||||
| Materials | Diaphragm : EPDM, Case : Al-Alloy Cylinder: STKM, Cover: SS41, Shaft & Stud-Bolt : SUS304 | ||||||||||
| Air Connection | Rc 1/4 | Rc 1/4 ~ Rc 1/2 | |||||||||
| Ambient Temperature | -20°C ~ +70°C (※ -50°C ~ -20°C, + 70°C ~ + 100°C) |
-20°C ~ +70°C (※ 0°C ~ +100°C) |
|||||||||
| Painting Color | Standard is red. (Request other color) | Standard is silver. (Request other color) | |||||||||
[Notes]
(1) Valve performance is represented under the condition of standard packing (V-PTFE).
(2) ※: Manufactured and attached as according to customer’s order.
