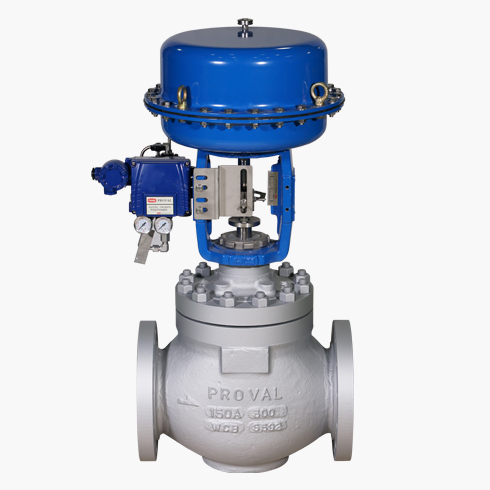

The PROVAL cage balanced control valves are designed for heavy duty service.
The valves plug is of a pressure-balanced type that permits flow control of a high differential pressure with bellows seal, extension, fin, jacket bonnet.
Standard actuators are multi-spring diaphragm actuator.
| Model No. | YAD-12231(cage single) / YAD-12241(Cage double) - RA Type, YAD-22231(cage single) / YAD-22241(Cage double) - DA Type |
|||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Valve Type | Diaphragm or Cylinder Actuator operated Globe control valve. | |||||||||||||||||
| BODY | Valve Size | (mm) | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | ||
| (inch) | 1 ½ | 2 | 2 ½ | 3 | 4 | 5 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | ||||
| Pressure Rating | ANSI 150# ~ 4500# / JIS 10K ~ 63K | |||||||||||||||||
| End Connections | Flange end: FF, RF, RTJ, M/F(female),T/G(female) ※Welding end: SW, BW | |||||||||||||||||
| Body Materials | A216-WCB, A351-CF8, CF8M, CF3M | |||||||||||||||||
| Operating Temperature |
Single | Standard Type: -20°C ~ 210°C Extension: -100°C ~ -20°C | ||||||||||||||||
| Double | Only fin bonnet type: over 220°C | |||||||||||||||||
| Guide | Cage Guide | |||||||||||||||||
| Gland Packing | V-PTFE, PTFE yarn, Graphite yarn | |||||||||||||||||
| Gasket | SUS316 + Graphite spiral wound, other alloy steels. | |||||||||||||||||
| Painting Color | Standard is silver. In the case of stainless steel, flange is not painted. | |||||||||||||||||
| Plug Characteristics | Linear, Equal %. | |||||||||||||||||
| Cage Type | Single | Single metal Seated and Hi-Seal. | ||||||||||||||||
| Double | Double metal Seated. | |||||||||||||||||
| Flow Direction | FTC ( Flow Action to Close ) | |||||||||||||||||
| Trim Materials | SUS630 (H.T), SUS304 (STL.), SUS316 (STL.), SUS316L (STL.) | |||||||||||||||||
| Treatment of Trim | See “MATERIAL DATA” page 3 ~ 5 | |||||||||||||||||
| PERFORMANCE | Control Mode | Throttling control, On-off control. | ||||||||||||||||
| Valve Action | Direct action, Reverse action. | |||||||||||||||||
| Allowable Differential Pressure |
See “ALLOWABLE PRESSURE DROP” page 7 | |||||||||||||||||
| Rated Cv Value | See “FLOW CHARACTERISTICS” page 5 | |||||||||||||||||
| Flow Characteristics | See “FLOW CHARACTERISTICS” page 6 | |||||||||||||||||
| Rangeability | 50A ~ 200A ( 50 : 1 ) , 250A over ( 30 : 1 ) | |||||||||||||||||
| Allowable Seat Leakage Ratio |
Metal Seat | Control | Single | 0.01% of rated Cv (ANSI B16. 104 Class IV) ※Tight shut off-0.005% |
0.01% of rated Cv (ANSI B16. 104 Class IV) | |||||||||||||
| Double | 0.1% of rated Cv (ANSI B16. 104 Class III) ※Tight shut off-0.01% |
0.1% of rated Cv(ANSI B16. 104 Class III) | ||||||||||||||||
| On-Off | Single | 0.005% of rated Cv (ANSI B16. 104 Class Ⅳ Over.) |
0.01% of rated Cv | |||||||||||||||
| Double | 0.01% of rated Cv(ANSI B16. 104 Class Ⅳ) | 0.05% of rated Cv | ||||||||||||||||
| Soft Seat | Control & On-Off |
Single & Double |
ANSI B16. 104 Class VI | |||||||||||||||
| Action Accuracy |
Hysteresis | (Without positioner) max. 4% F.S. (With positioner) max. 1% F.S. |
||||||||||||||||
| Linearity | (Without positioner) max. ±5% F.S. (With positioner) max. ±1% F.S. |
|||||||||||||||||
| ACTUATOR | Valve Size | (mm) | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | ||
| (inch) | 1 ½ | 2 | 2 ½ | 3 | 4 | 5 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | ||||
| Model | A-270M, A-360M, A-430M, A-520M or Cylinder type | |||||||||||||||||
| Actuator Type | Multi-spring diaphragm type. or Cylinder type | |||||||||||||||||
| Actuator Size (Diaphragm Size) | Ø270 | Ø360 | Ø430 | Ø520 | CYLINDER TYPE | |||||||||||||
| Max. Stroke (mm) | 30 | 45 | 65 | 90 | OVER 100mm | |||||||||||||
| Supply Air Pressure kPa (kgf/cm²G) |
140 (1.4), 240 (2.4), 280 (2.8), 320 (3.2) | (300~700) 3.7~7.0 | ||||||||||||||||
| Spring Range kPa (kgf/cm²G) |
20~98 (0.2~1.0), 40~200 (0.4~2.0) 60~220 (0.6~2.2), 80~240 (0.8~2.4) |
200~300 (2.0~3.0) 250~350 (2.5~3.5) |
||||||||||||||||
| Action | Direct action, Reverse action. | |||||||||||||||||
| Materials | Diaphragm: EPDM, York: A216-WCB, FCD Case: Al-Alloy, SS41 and STKM Cylinder | |||||||||||||||||
| Air Connection | Rc 1/4″ (※ Rc 3/8” ~ RC1) | |||||||||||||||||
| Ambient Temperature | -20°C ~ +70°C (※ -50°C ~ -20°C, +70°C ~ +100°C) | |||||||||||||||||
| Painting Color | Standard is Cobalt Blue(Munsell No : 2.5 PB3/10 ) [Request other color] | |||||||||||||||||
[Notes]
(1) Valve performance is represented under the condition of standard packing (V-PTFE).
(2) ※: Manufactured and attached as according to customer’s order.
(3) Please contact us as to the high pressure rating ANSI classes 900, 1500 and 2500 valves.
