QUICK CHANGE TYPE

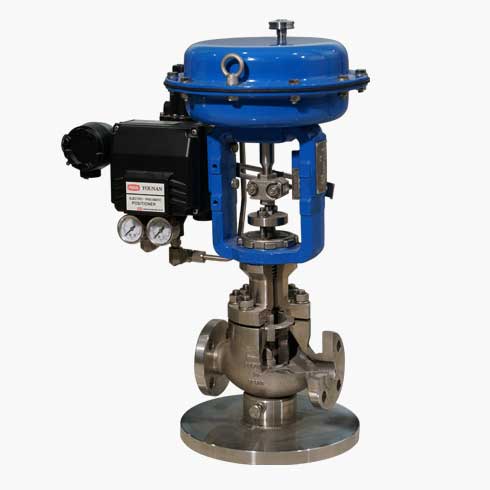

image of Quick Change Type

TOP GUIDE SINGLE SEATED TYPE

The design of Quick Change type control valves are designed for low and medium duty service. The compact valve, simple construction having low pressure loss, allows large flow capacity rangeability, and high accuracy flow characteristics.

It is available with bellows seal, extension, fin, jacket bonnet. The flow shut-off performance complies with the JIS, ANSI standards. Standard combined actuators are multi-spring diaphragm actuator.

CONTACT SALES >

FEATURES

· Reliability
The screwed-in seat ring on a tapered seating to minimize fluid leakage and erosion at the back of the seat ring.
· Valve plug stability
Two rugged and widely spaced packing box guide bushings stabilize and guide the valve plug at all point in its travel range to minimize vibration, mechanical noise, and trim wear.
· Application flexibility
The design of valve accepts a full range of equal percentage, linear, and quick opening valve plugs designed to handle a wide range of flow requirements. Restricted-capacity trim can be easily replaced with full-capacity trim. Hardened trim materials are available to increase trim life and improve performance.
· Economy
The design of valve delivers outstanding performance over an extended lifetime and is economical in cost of equipment, installation, and, maintenance.

SPECIFICATION

Model No. YAD-122Q1 (RA Type), YAD-222Q1 (DA Type)
Valve Type Diaphragm or Cylinder Actuator operated globe control valve.
BODY Valve Size (mm) 15 20 25 32 40 50 65 80 100 125 150 200 250 300
(inch) ½ ¾ 1 1 ¼ 1 ½ 2 2 ½ 3 4 5 6 8 10 12
Pressure Rating ANSI 150# ~ 2500# / JIS 10K ~ 63K
End Connections Flanged end: FF, RF, RTJ, M/F(female), T/G(female) ※Welding end: SW, BW
Body Materials A216-WCB, A351-CF8, CF8M, CF3M
Operating
Temperature		 Standard Type: -20°C ~ 210°C / Radiating Fin Type: Over 196°C / Extension: -100°C ~ -20°C
Guide Top guide
Gland Packing V-PTFE, PTFE yarn, Graphite yarn
Gasket SUS316 + Graphite spiral wound, Other alloy steels
Painting Color Standard is silver. In the case of stainless steel, flange is not painted.
Plug Characteristics Linear, Equal %.
Trim Materials SUS630 (H.T), SUS304 (STL.), SUS316 (STL.), SUS316L (STL.)
Treatment of Trim See page “MATERIAL DATA” page 3 ~ 5 / “MICRO TRIM” page 8
PERFORMANCE Control Mode Throttling control, On-Off control.
Valve Action Direct action, Reverse action.
Allowable
Differential Pressure		 See “ALLOWABLE PRESSURE DROP” page 9 / “MICRO TRIM” page 6
Rated Cv Value See “FLOW CHARACTERISTICS” page 8 / “MICRO TRIM” page 7
Flow Characteristics See “FLOW CHARACTERISTICS” page 8 / “MICRO TRIM” page 7
Rangeability 50:1 / “MICRO TRIM” page 7
Allowable Seat
Leakage Ratio		 Metal Seat Control 0.01% of rated Cv(ANSI B16. 104 Class IV)
※Tight shut off
Valve size % of rated Cv
25mm or less 0.0001%
80mm or less 0.001%
125mm or less 0.005%
ANSI B16.
104 Class IV
On-Off
Valve size % of rated Cv
25mm or less 0.0001%
100mm or less 0.001%
150mm or less 0.005%
Soft Seat Control
& On-Off		 ANSI B16. 104 Class VI
Action
Accuracy		 Hysteresis (Without positioner) max. 4% F.S.
(With positioner) max. 1% F.S.
Linearity (Without positioner) max. ±5% F.S.
(With positioner) max. ±1% F.S.
ACTUATOR Valve Size (mm) 15 20 25 32 40 50 65 80 100 125 150 200 250 300
(inch) ½ ¾ 1 1 ¼ 1 ½ 2 2 ½ 3 4 5 6 8 10 12
Model A-220M, A-270M, A-360M, A-430M, A-520M or CYLINDER TYPE
Actuator Type Multi-spring diaphragm type.
Actuator Size
(Diaphragm Size)		 Ø220 Ø270 Ø360 Ø430 Ø520
Max. Stroke (mm) 25 30 45 53 90
Supply Air Pressure
kPa (kgf/cm²G)		 140 (1.4), 240 (2.4), 280 (2.8), 320 (3.2)
Spring Range
kPa (kgf/cm²G)		 20~98 (0.2~1.0), 40~200 (0.4~2.0)
60~220 (0.6~2.2), 80~240 (0.8~2.4)
Action Direct action, Reverse action
Materials Diaphragm: EPDM, York: A216-WCB, FCD450 Case: Al-Alloy
Air Connection Rc 1/4”
Ambient Temperature -20°C ~ +70°C (※-50°C ~ -20°C, +70°C ~ +100°C)
Painting Color Standard is Cobalt Blue(Munsell No : 2.5 PB3/10 ) [Request other color]

[Notes]
(1) Valve performance is represented under the condition of standard packing (V-PTFE).
(2) ※: Manufactured and attached as according to customer’s order.
